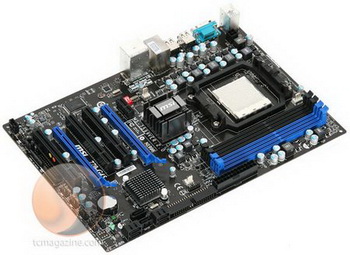

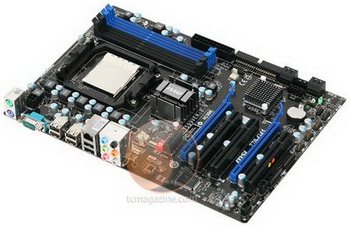

Among those features are the four DDR3-1600 slots, two PCI-Express x16 that enable CrossFireX setups, six SATA 3.0 Gbps ports, an integrated Gigabit Ethernet, 7.1 channel and an Easy OC Switch that allows configurations to be easily accomplished without the need to access the system BIOS.
The CPU will receive power through a simple 6 phase VRM circuit, which supports the Active Phase Switching. Seeing how the board will be able to use the Phenom II and Athlon II CPUs, it is likely that systems with the 770-G45 as a base will be able to achieve high performances. Not only that, but the OC Switch will allow the full use of the AMD OverDrive Advanced Clock Calibration feature, which provides overclocking possibilities. The 770-G45 also has several built-in USB 2.0 ports PCI-Express x4.
Motherboard MSI 770-G45 supports such processors as AM3 Phenom II and Athlon II and is equipped with four slots, DDR3-1600. Among the ports - two PCI-Express x16, which allows you to integrate ATI Radeon graphics cards to work together in a mode CrossFireX; six SATA 3 Gb / s and Gigabit Ethernet. The new board also supports audio 7.1 and technology Easy OC, simplifies the "acceleration" of the system (the motherboard has a special switch).
The previous two chipsets released in this series were the 770T-C45 and 770-C35. These two also supported overclocking, but only had at most one PCI-Express 2.0 x16. Another unsupported feature by 770T-C45 was DDR3.
The board will be sold at a 67 EUR.
Features
• Help user to unlock hidden CPU Core quickly
• Freely choose lock or unlock CPU Core(s)
• Easy to upgrade system performance
• APS is Active Phase Switching is complete function to Control Power Demand With Switcing Dynamically, it’s for CPU, Memory and Chipset PWM.
• Saving Power under Variable Loading.
• Power Usage More Efficiency.
• Faster and Flexible and instant
• If BIOS crash, it still can boot from USB Drive
• Update BIOS from USB Drive by M-Flash Fucntion
• Help end-users upgrade CPU FSB directly.
• Buy an essential CPU but want to reach higher performance.
• Skip the complicated BIOS OC setting and enjoy the higher level CPU performance.
The MSI Live Update online is designed to automatically download and update the BIOS and driver when there’s a new version online. It helps reduce the risk of getting the wrong file and minimize the trouble of searching the files from MSI website.
• Equip with 2 or more PCIe x16 slots, ATI CrossFire Ready.
• The ultimate multi-GPU performance gaming platform.
• Provides 2.7x faster performance than single graphic card solution.
Live Update 4 is a single utility software that automatically checks BIOS, driver and utility updates and installs for you , which can save your time for searching and lower the risk while updating.
AMD Cool'n'Quiet™ technology that based on famous PowerNow™ technology just brings fresh air to hot-fighting desktop platform. Cool'n'Quiet technology can automatically adjust processor ratio to throttle CPU speed with four modes.
Specifications
| Socket |
AM3 |
| CPU (Max Support) |
Phenom II |
| AM3 CPU Ready |
Y |
| FSB / Hyper Transport Bus |
up to 5200MT/s |
| Chipset |
AMD® 770+SB710 |
| DDR2 Memory |
N/A |
| DDR3 Memory |
DDR3 800/1066/1333/1600*(OC) |
| Memory Channel |
Dual |
| DIMM Slots |
4 |
| Max Memory (GB) |
16 |
| PCI-Ex16 |
2 |
| PCI-E Gen |
Gen2 (1x16, 1x4) |
| PCI-Ex4 |
N/A |
| PCI-Ex1 |
1 |
| PCI |
3 |
| IDE |
1 |
| SATA |
6 |
| RAID |
0/1/10/JBOD |
| LAN |
10/100/1000*1 |
| TPM |
1 |
| USB ports (Rear) |
6 |
| Audio ports (Rear) |
6 |
| Serial ports (Rear) |
1 |
| Parallel ports (Rear) |
N/A |
| 1394 ports (Rear) |
N/A |
| eSATA |
N/A |
| VGA |
N/A |
| DVI |
N/A |
| HDMI |
N/A |
| Display Port |
N/A |
| DirectX |
N/A |
| VGA Share Memory (MB) |
N/A |
| Form Factor |
ATX |
| DrMOS |
N/A |
| APS |
Y |
| Sideport Memory |
N/A |
| SLI |
N/A |
| 3-way SLI |
N/A |
| Hybrid SLI |
N/A |
| CrossFire |
Y |
| Hybrid CrossFire |
N/A |
| D-LED2 |
N/A |
| Green Power Genie |
N/A |
